Free Cutting Brass C360 CNC Machining for High Speed Production

What is C360 Free-Cutting Brass Machining?

If you are scaling up manufacturing, Free-cutting brass (C360) CNC machining for high-speed production is your go-to solution for rapid, reliable output. C36000, universally known as free-machining brass, is engineered specifically for rapid material removal. Its secret lies in a unique 2-phase metallurgical structure containing exactly 2.5% to 3.7% lead. This precise lead content acts as a microscopic, built-in lubricant right at the cutting edge.

Preventing Tool Fouling in High-Speed CNC Equipment

In automated production runs, long, stringy metal chips are a nightmare—they tangle around spindles, foul cutting tools, and force costly machine downtime. The structure of C360 brass completely eliminates this issue.

As the cutting tool engages the metal, the lead content causes the material to shear cleanly into small, easily cleared broken chips. This predictable chip control allows our high-speed brass milling services and Swiss CNC lathes to run continuously at maximum feed rates without jamming.

Core Benefits of C36000 Brass Machined Parts

Choosing C360 brass translates directly to better parts and lower manufacturing friction. The primary advantages include:

• Exceptional Surface Finish: Parts come off the machine naturally smooth and polished, frequently eliminating the need for expensive secondary finishing operations.
• Minimal Tool Wear: The internal lubrication drastically reduces friction, extending cutting tool life and keeping high-volume production costs low.
• Superior Conductivity: High thermal and electrical conductivity makes this alloy the top choice for demanding applications, from fluid valves to high-performance electrical connectors.

Why Choose C360 Free-Cutting Brass CNC Machining for High-Speed Production?

When it comes to manufacturing at scale, C36000 brass is the ultimate material choice. It directly impacts your bottom line by maximizing efficiency and minimizing downtime on the shop floor.

The 100 Machinability Rating Brass

C360 sets the industry baseline with a perfect 100% machinability rating. This allows us to run our equipment at maximum spindle speeds and aggressive feed rates. Whether we are executing complex turning operations or providing high-speed brass milling services, C360 ensures rapid material removal without ever compromising precision.

Cost-Effectiveness at Scale

Higher raw material costs can sometimes deter buyers, but C360 flips the script for large-scale manufacturing. The trade-off is clear: you pay slightly more upfront for the brass, but you drastically reduce machine hours and tool replacement expenses. This makes high-volume brass screw machine parts highly economical when producing thousands of units.

Fast Cycle Time CNC Brass & Tool Longevity

The secret to continuous, uninterrupted production lies in the material’s composition. The lead content in C360 acts as an internal lubricant during the cutting process. This prevents chip buildup on the cutting edge and significantly extends tool life, keeping machines running longer with zero manual intervention.

C360 Brass Production Advantages

Production Factor	C360 Brass Performance	Bottom-Line Impact
Machining Speed	100% Benchmark standard	Maximizes spindle speeds & daily output
Tool Wear	Minimal (Internal lubrication)	Slashes expensive tool replacement costs
Cycle Times	Extremely fast	Lowers per-unit machine hour costs
Volume Suitability	Excellent for continuous runs	Ideal for high-volume manufacturing scaling

ZSCNC’s Brass Machining Capabilities

When it comes to free-cutting brass (C360) CNC machining for high-speed production, having the right setup is everything. We have built our facility to handle the specific demands of global manufacturing, ensuring every brass part meets your exact specifications efficiently and accurately.

Here is a breakdown of our core manufacturing capabilities:

• Advanced Equipment: Our production floor features over 40 advanced CNC machines, including 3-axis, 4-axis, and 5-axis centers. By utilizing both traditional and specialized equipment, we leverage the unique precision advantages of Swiss machining vs CNC lathe turning to efficiently produce high-volume brass screw machine parts.
• Precision & Tolerances: Complex geometries require absolute precision. We maintain strict ISO compliance and follow rigorous industrial-grade CNC machining accuracy standards to consistently achieve micron-level tolerances on all tight tolerance brass components.
• Production Scalability: We adapt to your project volume. Our manufacturing process transitions smoothly from initial rapid prototyping directly into large-scale, high-speed brass milling services without compromising quality.
• Speed to Market: We know that fast cycle time CNC brass production is critical for your bottom line. Supported by a dedicated team of 70+ skilled technicians, we provide guaranteed 7-day delivery options to keep your supply chain moving and your assembly lines running without delay.

Common Applications for C360 Free-Cutting Brass Parts

At ZSCNC, we leverage the incredible versatility of C36000 to support diverse industries. Because this material machines so cleanly, we can produce complex geometries with tight tolerances without slowing down production lines. From heavy industrial machinery to delicate electronic assemblies, C360 remains the material of choice for high-volume manufacturing.

Fluid & Gas Handling

This is the bread and butter of brass machining. The material’s natural corrosion resistance makes it perfect for custom brass fittings and valves. We regularly manufacture high-pressure pump components, adapters, and couplings that require a perfect, leak-proof seal to handle water, gas, and hydraulic fluids safely.

Mechanical Components

The internal lubrication provided by the lead content in C360 brass reduces friction, which is critical for moving parts. Our facility specializes in precision brass gear manufacturing, producing durable gears, bushings, bearings, and fasteners. These components offer long service life and minimal wear, even in demanding mechanical environments.

Electrical & Electronics

Brass isn’t just tough; it is highly conductive. We produce high-volume brass electrical connectors machining orders, including terminals, contact pins, and sockets. These parts ensure reliable conductivity and signal transmission for consumer electronics and industrial power systems.

Specialized Sectors (Aerospace, Medical, & EV)

Modern industries demand more than just standard parts. We handle intricate designs for the medical field and the rapidly growing electric vehicle market. Whether you need complex sensor housings or custom automotive components, our Swiss-style lathes deliver the micron-level accuracy these high-tech sectors require.

Technical Specifications of C36000 Brass

Understanding the exact makeup of the material is critical for precision engineering. C36000 sets the benchmark for machinability primarily due to its specific lead content, which acts as an internal lubricant and chip breaker. Below is the detailed breakdown of the chemical and physical properties that make this alloy ideal for high-volume manufacturing.

Chemical Composition (ASTM B16)

The “free-cutting” capability comes from the controlled addition of lead, dispersed throughout the copper-zinc matrix.

Element	Nominal Percentage (%)	Function
Copper (Cu)	60.0% – 63.0%	Provides ductility and corrosion resistance.
Lead (Pb)	2.5% – 3.7%	Ensures chip breaking and lubricity (100% machinability).
Iron (Fe)	0.35% Max	Kept low to prevent tool wear and hard spots.
Zinc (Zn)	Remainder	Increases hardness and tensile strength.

Physical & Mechanical Properties

Beyond composition, the physical characteristics of C360 determine how the final part performs under stress and electrical load.

• Density: 8.50 g/cm³ (0.307 lb/in³)
• Machinability Rating: 100% (The standard against which all other metals are measured)
• Tensile Strength: 338 – 469 MPa (49,000 – 68,000 psi)
• Yield Strength: 124 – 310 MPa (18,000 – 45,000 psi)
• Thermal Conductivity: 115 W/m·K (at 20°C)
• Electrical Conductivity: 26% IACS (International Annealed Copper Standard)

Compliance and Lead-Free Alternatives

While C36000 is the industry standard for speed, we understand that global regulations are shifting. Standard C360 contains lead, which may restrict its use in potable water systems or specific European markets under RoHS/REACH directives.

For projects requiring strict environmental compliance, we source and machine lead-free brass alternatives such as C46400 (Naval Brass) or C69300 (Eco Brass). These alloys maintain high strength and corrosion resistance while meeting the rigorous safety standards required for medical, food processing, and modern automotive applications. We ensure full material traceability and certification with every shipment to verify compliance with ASTM B16 or equivalent low-lead standards.

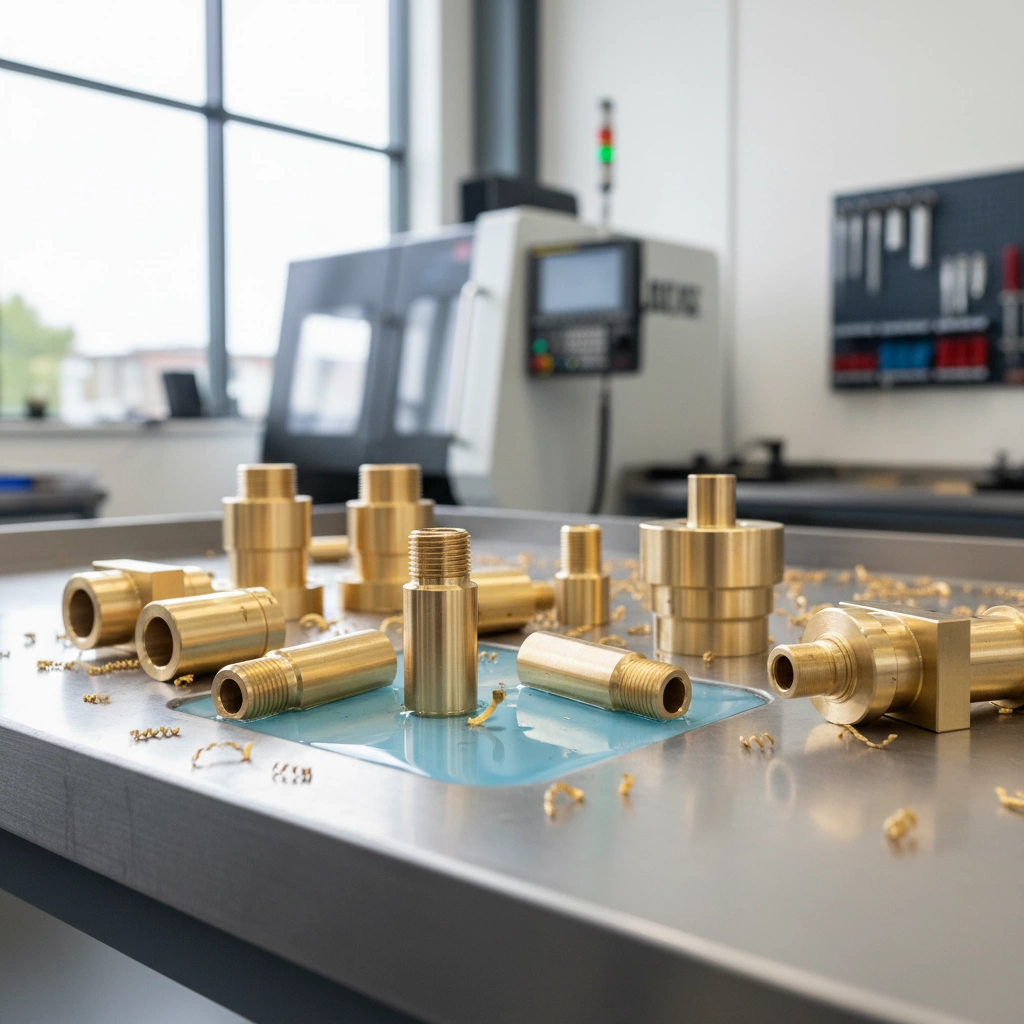

Surface Finishes & Secondary Operations

Exceptional As-Machined Quality

Free-cutting brass (C360) CNC machining for high-speed production naturally yields an outstanding surface finish straight off the machine. Thanks to its unique material structure, C36000 brass machined parts feature a smooth, bright appearance that frequently eliminates the need for secondary polishing. Maintaining strict control over the influence of surface roughness on part performance is effortless with this alloy, ensuring precision results even during high-speed brass milling services.

Custom Plating & Coatings

While the natural brass finish is excellent for most applications, specific environments demand enhanced surface properties. We provide specialized plating and coating options to boost durability, electrical conductivity, and corrosion resistance.

Finish Option	Primary Application	Core Advantage
As-Machined	Custom brass fittings and valves	Cost-effective with a naturally flawless surface
Nickel Plating	Fluid handling & mechanical parts	Superior wear and corrosion resistance
Tin Plating	Brass electrical connectors	Outstanding solderability and environmental protection
Gold Plating	High-end electronics & pins	Maximum electrical conductivity and oxidation resistance
Passivation	Regulated aerospace & medical parts	Removes surface contaminants for pure performance

Integrated Assembly Services

We streamline your global supply chain by offering comprehensive post-machining assembly. Rather than managing multiple vendors, you receive ready-to-install components. We seamlessly integrate your free-machining brass CNC turning parts with hardware, O-rings, or other machined components, delivering a fully assembled, quality-tested product directly to your production line.

Quality Assurance & Global Logistics

When handling free-cutting brass (C360) CNC machining for high-speed production, maintaining tight tolerances at scale is our priority. We back our manufacturing capabilities with robust quality management and streamlined international shipping to keep your supply chain moving without delays.

• ISO 9001 Certified Quality: Every batch of C36000 brass machined parts comes with full traceability documentation. We conduct upfront DFM (Design for Manufacturing) analysis and rely on strict quality control procedures with rigorous in-process inspections to ensure zero defects from the first part to the millionth.
• Global Export Expertise: We routinely supply high-volume brass screw machine parts to demanding markets across the US, Japan, and Europe. Our team understands international compliance standards and ensures seamless supply chain integration, no matter where your operations are based.
• Hassle-Free DDP Shipping: We eliminate cross-border friction. Through Delivered Duty Paid (DDP) shipping, we handle all freight, customs, and import duties. Your precision brass components are delivered straight to your facility or assembly line, ready for immediate use.

Frequently Asked Questions (FAQs)

How does C360 brass compare to leaded steel in CNC machining regarding speed and finish?
C360 free-cutting brass machines significantly faster than leaded steel. It holds the industry benchmark with a 100% machinability rating. This allows us to push maximum spindle speeds and feed rates during high-speed production. The natural lubrication from the lead content also delivers a naturally smooth, superior surface finish straight off the machine, whereas steel often requires secondary polishing.

What is the maximum tolerance ZSCNC can hold on Swiss-machined brass parts?
For Swiss CNC brass machining, we routinely hold tight tolerances down to ±0.005mm (5 microns). This micron-level precision is perfect for complex, high-volume brass screw machine parts, ensuring exact fits for demanding mechanical, aerospace, and electrical applications.

Do you offer lead-free brass machining for environmentally regulated markets like the EU?
Yes, we do. We strictly follow RoHS and REACH compliance standards for global markets. As an experienced custom CNC machining supplier for overseas buyers, we regularly source and machine lead-free brass alternatives like C46400 and C69300. You get fully compliant parts without compromising on structural integrity or performance.

How fast can I get a prototype for a custom brass fitting?
We prioritize speed to market. For custom brass fittings and valves, we can deliver rapid prototypes in as little as 3 to 7 days. Once you approve the prototype, our facility is equipped to immediately scale into high-volume free-cutting brass (C360) CNC machining for high-speed production to meet your exact supply chain demands.
